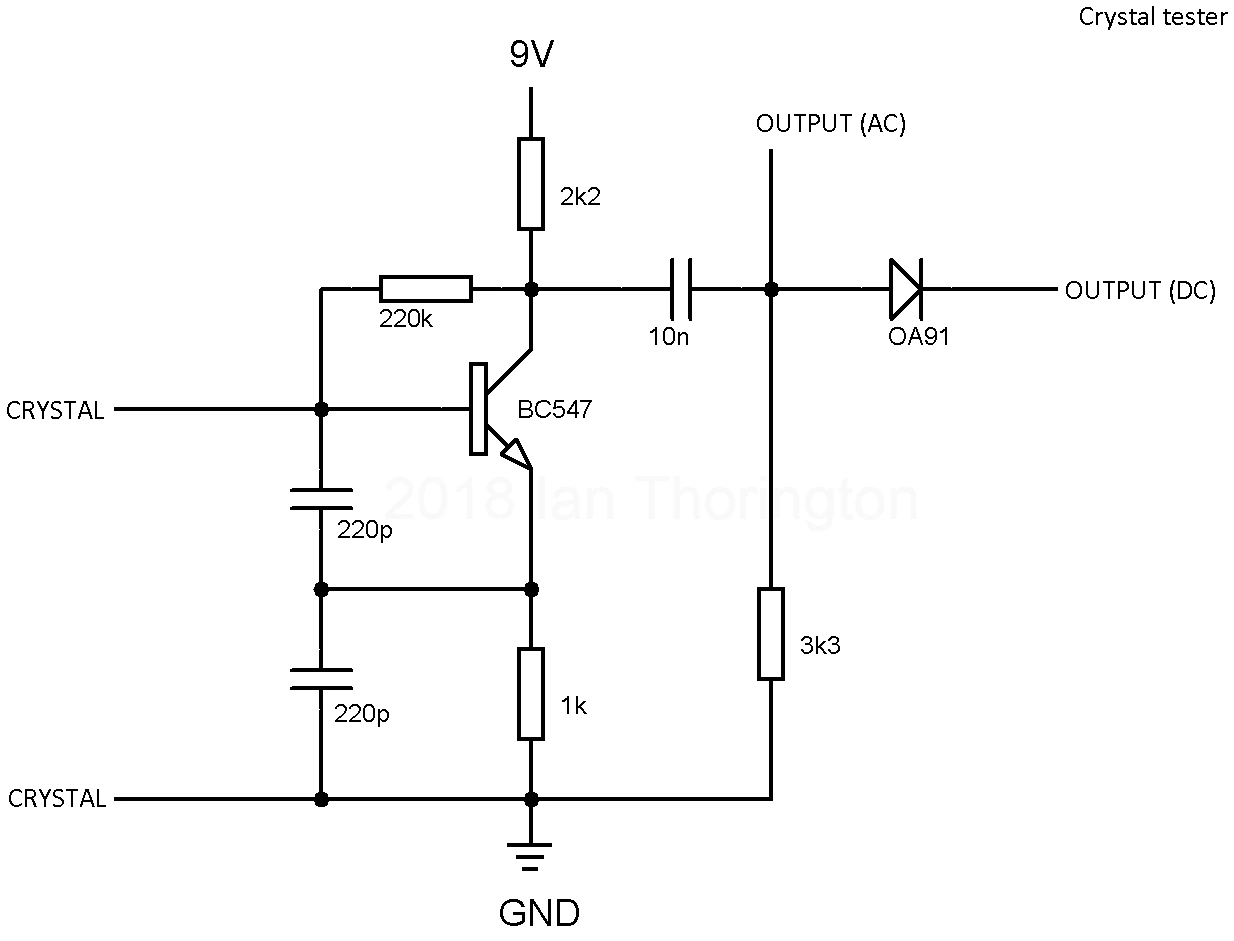

This simple crystal tester will provide an oscillating output when a working crystal is attached to it. It can connect to an oscilloscope or frequency counter.
Its assumed that the circuit will measure up to a 100 Mhz crystal using the suggested BC547.
This design is not mine. I will credit the owner when I find them again online.
